Qualcomm Snapdragon X Elite Analysis - More efficient than AMD & Intel, but Apple stays ahead
It was around nine months ago when Qualcomm announced the new Snapdragon X SoCs for Windows, and now we finally get devices with the new ARM chips. Microsoft calls these laptops Copilot+ and all major manufacturers offer corresponding devices. We already reviewed the new Asus Vivobook S 15 OLED with the Snapdragon X Elite (X1E-78-100), but now we want to take a closer look at the performance as well as the efficiency of the new Snapdragon chip. Microsoft's Surface Pro 11 with the faster Snapdragon X Elite (X1E-80-100) with dual-core turbo has also arrived in our editorial office and will be included here as well.
Update June 22nd: Additional CPU benchmarks and efficiency results for the Snapdragon X Plus (X1P-64-100)
Are you a techie who knows how to write? Then join our Team! Wanted:
- News Writer
Details here
Snapdragon X Elite Overview
ARM processors for Windows are nothing new, but the experience so far was usually not really comparable to the x86 competition from AMD or Intel, and there were not many models on the market. Qualcomm now launches new Snapdragon X SoCs (4 nm design) in combination with an ARM version of Windows. Microsoft also supports the new devices heavily and there are exclusive AI features - at least for now. All new Snapdragon models are called Copilot+ laptops, so they are easy to spot. There are native ARM apps of many popular apps (like the full Office suite, browsers, many Adobe apps), but x86 apps have to be emulated. This worked pretty well in our tests so far and the best case scenario is that these emulated apps simply run a bit slower due to the emulation. However, there can also be crashes (often happened during gaming tests) or the apps simply won't launch at all. It is unfortunately not always easy to find our whether there is a native ARM app or not.
The basic idea can be compared to Apple's ARM processors and efficiency is a big topic here. This also means users won't be able to upgrade the memory. The majority of new Snapdragon laptops is shipped with 16 GB RAM and some units offer 32 GB RAM. The Snapdragon X SoCs support up to 64 GB of LPDDR5x-8448 RAM. All Snapdragon chips are equipped with a fast Wi-Fi 7 module as well as Bluetooth 5.4 and there is an optional 5G modem.

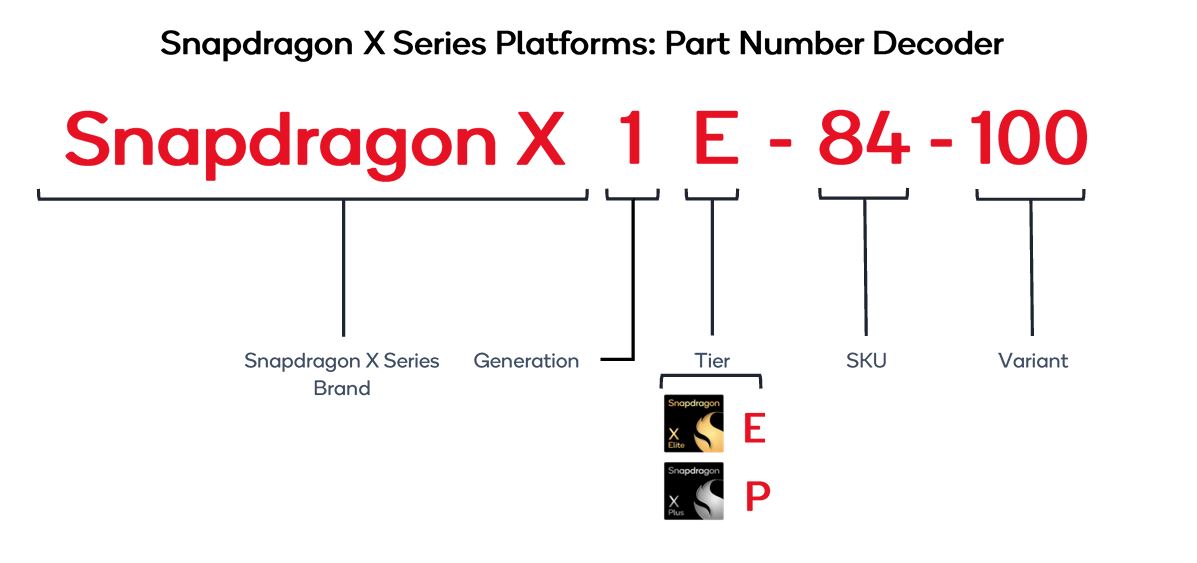

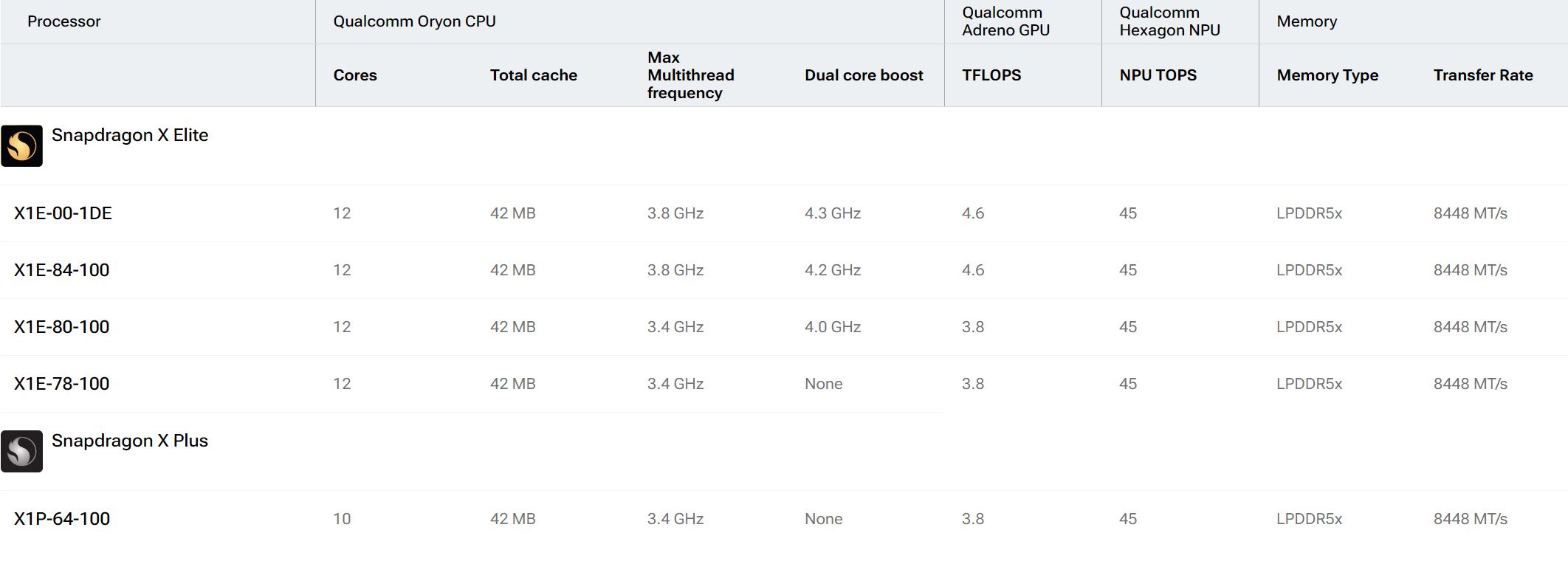

The smallest chip is the Snapdragon X Plus with 10 CPU cores, while the Snapdragon X Elite SoCs have 12 CPU cores (Oryon CPU) with two clusters (performance cluster with 8 cores & efficiency cluster with 4 cores). The cores are based on the ARM v8.7 micro architecture and do not support Hyperthreading. The naming scheme of the new Snapdragon X Elite is pretty cryptic and many of the launch models are equipped with the entry-chip X1E-78-100, which does not support dual-core turbo, so all cores can reach the specified 3.4 GHz. The faster models support dual-core turbo frequencies in the range between 4.0-4.3 GHz and the two top models have a higher frequency of 3.8 GHz on all cores. However, our two review units already show that the processor does not really say much about the dual-core performance. Like on AMD and Intel chips, the results heavily depend on the power limits set by the manufacturer. Simply said, the Elite SoCs can operate in a TDP range between 15-80 Watts, which will obviously have a big effect on the performance.

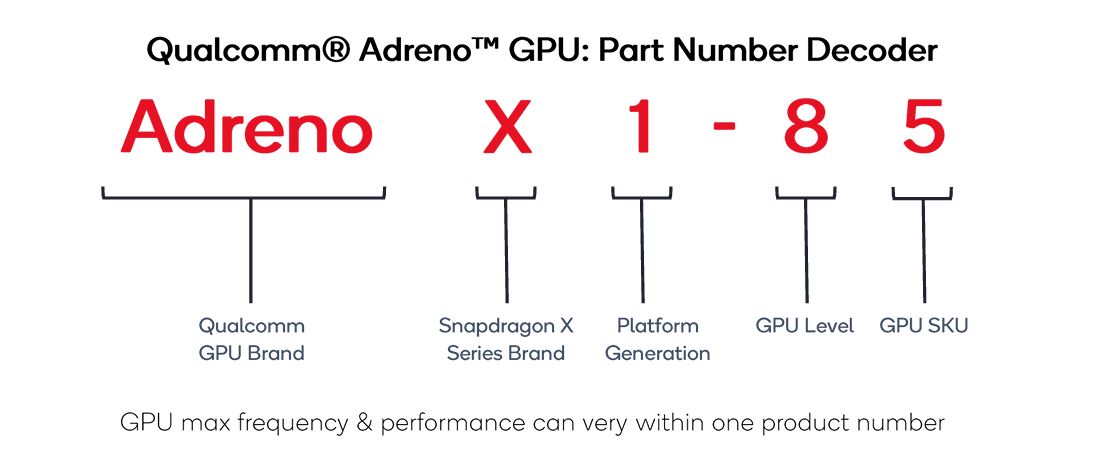

The official designation of the integrated Adreno GPU is Adreno X1-85 and there are currently two versions depending on the processor. The GPUs of the two faster Snapdragon X Elite SoCs manage 4.6 TFLOPS according to Qualcomm, while the slower unit manages 3.8 TFLOPS (also applies for the Snapdragon X Plus). The GPU supports DirectX 12 and features 6 shader processors clocked at 1.5 GHz in the top model and 1.2 GHz in the slower version. there is no dedicated GPU driver like we are used to from AMD and Intel. Instead, there are additional settings (like Super Resolution) available in the GPU settings of Windows.
The NPU of the Snapdragon X SoCs is called Qualcomm Hexagon NPU and manages 45 TOPS. This means the NPU is slightly faster than the required 40 TOPS specified by Microsoft for the Copilot+ features.
Test Systems - Asus Vivobook S 15 OLED & Microsoft Surface Pro 11

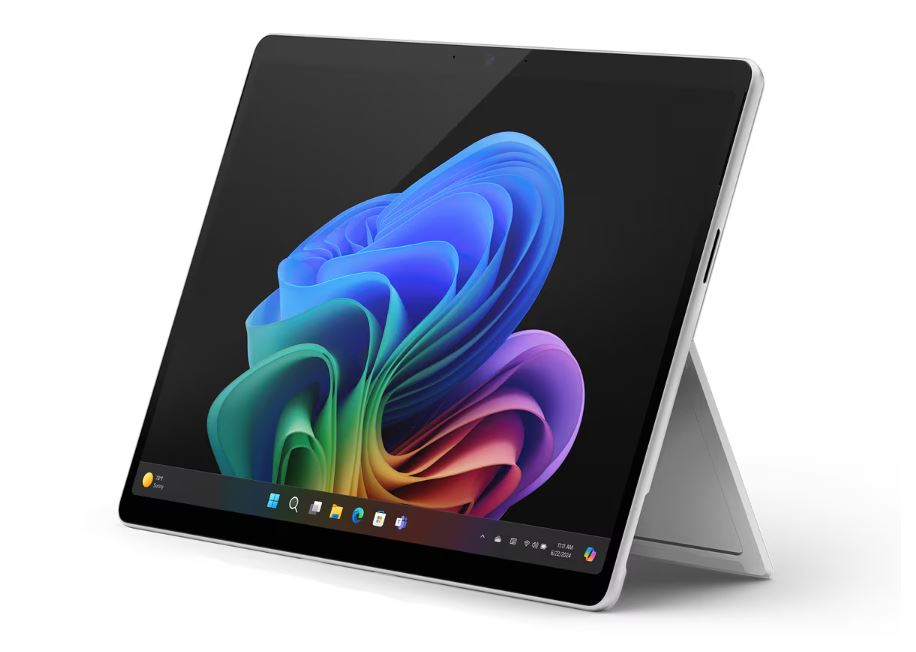

Our test systems are the Asus Vivobook S 15 OLED (here in review) with the entry-level Snapdragon X Elite X1E-78-100 as well as the Microsoft Surface Pro OLED Copilot+ with the faster X1E-80-100. The interesting aspect is the TDP configuration, because there is currently no app that can show the current consumption of the new Qualcomm chips and we can only make educated guesses based on our own power consumption measurements when there are no specified values from the manufacturer. You also have to keep in mind that the TDP value of Snapdragon SoCs is not directly comparable to TDP values for AMD and Intel chips, since the Snapdragon TDP also includes the power consumption for the memory as well as the micro controllers.
The two chips are basically pretty comparable with 12 cores and a maximum clock of 3.4 GHz. The X1E-80-100 also features a dual-core turbo of up to 4.0 GHz. The integrated Adreno GPU (X1-85, 3.8 TFLOPS) as well as the NPU (45 TOPS) are identical, though. The Asus laptop offers different performance profiles (TDP range between 20-50 Watts), while the Surface Pro OLED seems to use a TDP range between ~25-30 Watts.
We will also get our hands on the new Samsung galaxy Book Edge 16 with the more powerful X1E-84-100 soon. This chip offers a higher dual-core turbo frequency, higher frequency for all cores as well as the faster iGPU variant. We will update this article as soon as we have test results.
Update June 22nd: We have received the base model of the Surface Pro Copilot+. It uses an IPS panel instead of the OLED screen and is also equipped with the new Snapdragon X Plus (X1P-64-100). It uses the same Adreno GPU (3.8 TFLOPS) as well as Hexagon NPU (45 TOPS), but only gets 10 instead of 12 CPU cores (number of efficiency cores is reduced from 4 to 2). The Surface Pro Copilot+ with the Snapdragon X Plus is also equipped with an active cooling solution and the TDP configuration seems to be identical to the faster Snapdragon X Elite SKU.
Testing procedure
We want to compare the different processors and integrated graphics adapters as fairly as possible. In addition to the pure performance in synthetic benchmarks, we also measure the power consumption to get efficiency results. We perform the power measurements with an external screen in order to eliminate impacts caused by different display sizes and technologies. We still measure the overall system consumption and do not solely rely on indicated values for the CPU and GPU.
We usually use Cinebench R23 for our CPU measurements since the benchmark also runs natively on Apple's M-SoCs and we have plenty of data for this benchmark. However, Cinebench R23 has to be emulated on ARM Windows and the additional translation layer would affect the results. Therefore, we switched to Cinebench 2024, but this means we only have limited data to compare. We will also check the efficiency of the Snapdragon SoC with different power limits and compare the results with modern AMD/Intel chips (also with different power levels) as well as the current Apple M3 as well as the older M2 Pro. We still use the game The Witcher 3 for GPU efficiency results, since it is among the recommended games in Qualcomm's official review guide and we also have plenty of comparison data for this scenario.
Single-Core Performance & Efficiency
We start with the single-core performance and the two new Qualcomm chips perform very well. The X1E-80-100 with the turbo frequency of 4.0 GHz is around 15 % faster compared to the entry-level X1E-78-100 without turbo, both in Cinebench 2024 as well as Geekbench. The X1E-78-100 is sitting right between the two current chips from AMD and Intel and is even slightly ahead in Cinebench. The X1E-80-100 on the other hand is faster than both x86 chips and competes with the old Apple M2 Pro. Apple's M3 and the new M4 are out of reach, though. Apple's latest M4 chip has a massive advantage of 30 % in Geekbench.
Cinebench 2024 - CPU Single Core | |
Apple M3 | |
Apple M2 Pro | |
Qualcomm Snapdragon X Elite X1E-80-100 | |
Qualcomm Snapdragon X Plus X1P-64-100 | |
Qualcomm Snapdragon X Elite X1E-78-100 | |
AMD Ryzen 7 8845HS | |
Intel Core Ultra 7 155H |
Geekbench 6.2 - Single-Core | |
Apple M4 (10 cores) | |
Apple M3 | |
Qualcomm Snapdragon X Elite X1E-80-100 | |
Apple M2 Pro | |
AMD Ryzen 7 8845HS | |
Qualcomm Snapdragon X Elite X1E-78-100 | |
Qualcomm Snapdragon X Plus X1P-64-100 | |
Intel Core Ultra 7 155H |
Let's talk about single-core efficiency next. At the bottom of our comparison chart are the two CPUs from AMD as well as Intel, while the new Snapdragon chips manage about twice the number of points per Watt. It is also interesting to see that the single-core efficiency of the two Snapdragon X Elite SoCs is basically identical. Apple's wo CPUs are out of reach, though. The old M2 Pro manages 25 % more points per Watt while the M3 almost manages twice the points per Watt. Unfortunately, we have no efficiency data for Apple's M4 yet since it is only available in the new iPad Pro and we are not able to perform accurate power measurements with an external screen.
Update June 22nd: The single-core performance of the X1P-64-100 is on par with the X1E-78-100, which is hardly surprising considering the same core clock of 3.4 GHz. However, it seems that the Snapdragon X Plus is slightly more efficient here (at least our test unit) with better results compared to the two Snapdragon X Elite units.
Power Consumption / Cinebench 2024 Single Power Efficiency - external Monitor | |
Apple M3 | |
Apple M2 Pro | |
Qualcomm Snapdragon X Plus X1P-64-100 | |
Qualcomm Snapdragon X Elite X1E-80-100 | |
Qualcomm Snapdragon X Elite X1E-78-100 | |
AMD Ryzen 7 8845HS | |
Intel Core Ultra 7 155H |
Power Consumption / Cinebench 2024 Single Power (external Monitor) | |
AMD Ryzen 7 8845HS | |
Intel Core Ultra 7 155H | |
Qualcomm Snapdragon X Elite X1E-80-100 | |
Qualcomm Snapdragon X Elite X1E-78-100 | |
Apple M2 Pro | |
Qualcomm Snapdragon X Plus X1P-64-100 | |
Apple M3 |
* ... smaller is better
Multi-Core Performance & Efficiency
The Qualcomm SoCs also perform well in multi-core scenarios and Cinebench 2024 shows that they scale nicely. At 35 Watts, the Intel Core Ultra 7 155H (even at 50 Watts) is beaten and only the Ryzen 7 8845HS at 54 Watts is a bit faster. Apple's M2 Pro SoC is beaten when the Qualcomm chip can use 45 Watts or more. The Geekbench performance on the other hand is pretty much identical with different power settings and comparable to Apple's M3 Pro with 14 CPU cores.
Qualcomm and some of the laptop manufacturers advertise the performance advantage over the Apple M3, and we can confirm that claim in multi-core tests. However, the M3 is usually passively cooled in most devices and the real competitors for the Snapdragon SoCs are the M3 Pro chips. We will add the data for the M3 Pro chips as quickly as possible.
Cinebench 2024 - CPU Multi Core | |
Apple M3 Max 16-Core | |
Qualcomm Snapdragon X Elite X1E-78-100 | |
Qualcomm Snapdragon X Elite X1E-78-100 | |
Apple M2 Pro | |
Qualcomm Snapdragon X Elite X1E-78-100 | |
AMD Ryzen 7 8845HS | |
Apple M3 Pro 11-Core | |
Qualcomm Snapdragon X Elite X1E-80-100 | |
Intel Core Ultra 7 155H | |
AMD Ryzen 7 8845HS | |
Qualcomm Snapdragon X Plus X1P-64-100 | |
Qualcomm Snapdragon X Elite X1E-78-100 | |
Intel Core Ultra 7 155H | |
Apple M3 | |
Apple M3 | |
AMD Ryzen 7 8845HS | |
Intel Core Ultra 7 155H |
Geekbench 6.2 - Multi-Core | |
Apple M3 Max 16-Core | |
Apple M4 (10 cores) | |
Apple M2 Pro | |
Qualcomm Snapdragon X Elite X1E-80-100 | |
Qualcomm Snapdragon X Elite X1E-78-100 | |
Apple M3 Pro 11-Core | |
Qualcomm Snapdragon X Elite X1E-78-100 | |
Qualcomm Snapdragon X Elite X1E-78-100 | |
Qualcomm Snapdragon X Elite X1E-78-100 | |
Qualcomm Snapdragon X Plus X1P-64-100 | |
AMD Ryzen 7 8845HS | |
Intel Core Ultra 7 155H | |
AMD Ryzen 7 8845HS | |
Apple M3 | |
Apple M3 | |
Intel Core Ultra 7 155H | |
AMD Ryzen 7 8845HS | |
Intel Core Ultra 7 155H |
Our efficiency numbers clearly indicate that the new Snapdragon CPUs are generally more efficient than the two chips from AMD and Intel in multi-core scenarios. The most efficient power range of the Snapdragon X Elite chips seems to be 20-30 Watts, where they even slightly beat the Ryzen 7 8845HS at 20 Watts. Apple's M2 Pro is also beaten in this range. However, if you increase the power limits, the Snapdragon X Elite loses efficiency quickly, especially at v45 Watts or more. This is not a good sign for the faster Snapdragon variants. Apple's M3 is much more efficient and based on efficiency comparisons we did with Cinebench R23, we know that the M3 Pro chips are much more efficient than the M2 Pro models. It is therefore safe to say that the M3 Pro CPUs will also be much more efficient than the Snapdragon models.
Update June 22nd: The Snapdragon X Plus in the Surface Pro Copilot+ is between 8-11 % slower compared to the Snapdragon X Elite in the Surface Pro OLED Copilot+. It is also 31 % faster than the Apple M3 in Cinebench 2024, but the advantage shrinks to about 10 % in Geekbench. The efficiency numbers of the Snapdragon X Plus is a bit worse compared to the X Elite SKU, but the difference is not huge. Depending in the TDP limits, these values can obviously be different for other devices.
Power Consumption / Cinebench 2024 Multi Power Efficiency - external Monitor | |
Apple M3 | |
Qualcomm Snapdragon X Elite X1E-80-100 | |
Qualcomm Snapdragon X Elite X1E-78-100 | |
AMD Ryzen 7 8845HS | |
Qualcomm Snapdragon X Plus X1P-64-100 | |
Qualcomm Snapdragon X Elite X1E-78-100 | |
Apple M2 Pro | |
Qualcomm Snapdragon X Elite X1E-78-100 | |
AMD Ryzen 7 8845HS | |
Intel Core Ultra 7 155H | |
Intel Core Ultra 7 155H | |
Qualcomm Snapdragon X Elite X1E-78-100 | |
Intel Core Ultra 7 155H | |
AMD Ryzen 7 8845HS |
Power Consumption / Cinebench 2024 Multi Power (external Monitor) | |
Qualcomm Snapdragon X Elite X1E-78-100 | |
AMD Ryzen 7 8845HS | |
Intel Core Ultra 7 155H | |
Qualcomm Snapdragon X Elite X1E-78-100 | |
Apple M2 Pro | |
AMD Ryzen 7 8845HS | |
Qualcomm Snapdragon X Elite X1E-78-100 | |
Intel Core Ultra 7 155H | |
Qualcomm Snapdragon X Elite X1E-80-100 | |
Qualcomm Snapdragon X Plus X1P-64-100 | |
Qualcomm Snapdragon X Elite X1E-78-100 | |
Intel Core Ultra 7 155H | |
AMD Ryzen 7 8845HS | |
Apple M3 |
* ... smaller is better
GPU Performance & Efficiency
We use the native benchmarks 3DMark Wild Life Extreme Unlimited, Geekbench, as well as GFXBench for our GPU comparison. The benchmarks show big differences and the OpenCL performance, for example, is worse compared to the immediate rivals. the new Adreno GPU sits between the Radeon 780M and the Intel Arc Graphics with 8 Xe cores in 3DMark, but Apple's M3 chips (and obviously M4 & M2 Pro) are faster.
Qualcomm's Adreno GPU is slightly faster than the 8-core GPU of the Apple M3 in the two High-Tier tests of GFXBench, but all the other M3 GPUs as well as the M2 Pro are once again faster.
Geekbench 6.2: GPU OpenCL
GFXBench: 3840x2160 4K Aztec Ruins High Tier Offscreen | 2560x1440 Aztec Ruins High Tier Offscreen | 1920x1080 Aztec Ruins Normal Tier Offscreen
3DMark / Wild Life Extreme Unlimited | |
Apple M2 Pro 19-Core GPU | |
Apple M3 Pro 14-Core GPU | |
Apple M4 10-core GPU | |
Apple M3 10-Core GPU | |
Apple M3 8-Core GPU | |
Intel Arc 8-Core iGPU | |
Qualcomm Snapdragon X Adreno 3.8 TFLOPS GPU | |
Qualcomm Snapdragon X Adreno 3.8 TFLOPS GPU | |
AMD Radeon 780M |
Geekbench 6.2 / GPU OpenCL | |
Apple M2 Pro 19-Core GPU | |
Apple M3 Pro 14-Core GPU | |
AMD Radeon 780M | |
Apple M3 10-Core GPU | |
Intel Arc 8-Core iGPU | |
Apple M3 8-Core GPU | |
Qualcomm Snapdragon X Adreno 3.8 TFLOPS GPU | |
Qualcomm Snapdragon X Adreno 3.8 TFLOPS GPU | |
Qualcomm Snapdragon X Adreno 3.8 TFLOPS GPU |
GFXBench / 4K Aztec Ruins High Tier Offscreen | |
Apple M2 Pro 19-Core GPU | |
Apple M3 Pro 14-Core GPU | |
Apple M4 10-core GPU | |
Apple M3 10-Core GPU | |
Qualcomm Snapdragon X Adreno 3.8 TFLOPS GPU | |
Qualcomm Snapdragon X Adreno 3.8 TFLOPS GPU | |
Apple M3 8-Core GPU | |
Intel Arc 8-Core iGPU | |
AMD Radeon 780M |
GFXBench / Aztec Ruins High Tier Offscreen | |
Apple M2 Pro 19-Core GPU | |
Apple M3 Pro 14-Core GPU | |
Apple M3 10-Core GPU | |
Apple M4 10-core GPU | |
Qualcomm Snapdragon X Adreno 3.8 TFLOPS GPU | |
Qualcomm Snapdragon X Adreno 3.8 TFLOPS GPU | |
Apple M3 8-Core GPU | |
Intel Arc 8-Core iGPU | |
AMD Radeon 780M |
GFXBench / Aztec Ruins Normal Tier Offscreen | |
Apple M2 Pro 19-Core GPU | |
Apple M3 Pro 14-Core GPU | |
Apple M4 10-core GPU | |
Apple M3 10-Core GPU | |
Apple M3 8-Core GPU | |
Qualcomm Snapdragon X Adreno 3.8 TFLOPS GPU | |
Qualcomm Snapdragon X Adreno 3.8 TFLOPS GPU | |
Intel Arc 8-Core iGPU | |
AMD Radeon 780M |
Our GPU efficiency results are similar to the CPU results, because the Adreno GPU (which should consume around 12-15 Watts based on our power measurements) is once again more efficient than the competition from AMD and Intel, but is clearly lagging behind the Apple GPUs.
* ... smaller is better
Power Consumption Idle & Video Playback
We also checked the power consumption of the laptops while idling and during playback of a 4K YouTube video (full screen). We once again used an external 4K display to avoid impacts from different panel sizes and technologies. The test video was our review of the Asus Vivobook S 15 OLED and we used the default browsers.
Laptop | Idle consumpotion | Consumption during 4K YouTube playback |
---|---|---|
Asus Vivobook S 15 (X1E-78-100) |
6.27 Watts | 7.79 Watts |
Microsoft Surface Pro OLED (X1E-80-100) |
4.15 Watts | 5.76 Watts |
Apple MacBook Air 13 M3 Apple M3 8C GPU |
3.01 Watts | 3.53 Watts |
Schenker Via 14 Pro AMD Ryzen 7 8845HS |
7.73 Watts | 16.34 Watts |
RedmiBook 14 Pro Intel Core Ultra 7 155H |
5.71 Watts | 18.4 Watts |
The idle measurements show that in addition to the SoC itself, the results also depend on the optimization by the manufacturers. The Snapdragon X Elite in the Surface Pro OLED Copilot+ is slightly more efficient compared to the Asus Vivobook S 15 OLED, for example. The RedmiBook Pro 14 with the Intel Core Ultra 7 155H is sitting between the two Qualcomm chips, while the AMD Ryzen 7 8845HS in the Schenker Via 14 Pro is lagging behind. We had no access to the respective U-series chips for this test, but we will add the data as soon as possible. Apple's M3 chip is still the most efficient SoC.
This is also the case for video playback, but the two Qualcomm SoCs are not far behind. Both the Intel as well as AMD system consume significantly more power in this scenario.
Verdict - Qualcomm with a successful premiere, but Apple stays ahead in terms of efficiency
Qualcomm's new Snapdragon X Elite chips are off to a good start and our analysis shows that the ARM SoCs are more efficient than current Intel and AMD chips, both in terms of the CPU as well as GPU tests. In the worst case, these SoCs are tied, which is quite an accomplishment for a completely new chip.
The big issue is that Qualcomm's marketing was pretty aggressive and that raised high expectation, which are not really met. Yes, the Snapdragon X Elite chips offer more multi-core performance than Apple's M3, but the Apple-SoC is often cooled passively (like in the MacBook Air) and also has the upper hand in terms of single-core performance as well as efficiency. And the new M4 chip in the iPad Pro is a good indicator for the performance we can expect from the upcoming laptop SoCs.
You will definitely be disappointed if you were expecting passively cooled Snapdragon devices. So far, we have no information about such a device and high power limits have to be cooled, there is just no way around that. The Asus Vivobook S15 OLED is a bit quieter than AMD/Intel based laptops during everyday/light workloads, for example but it is very audible when you stress the processor. Microsoft's Surface Pro OLED Copilot+ is pretty quiet so far, but it is not cooled passively, either. We are already eager to see how the more powerful chips will behave.
Qualcomm manages to offer competitive products with their first-generation Snapdragon X Elite SoCs. AMD and Intel can usually be beaten in terms of performance and efficiency, but Apple is still ahead.
It is a successful launch from a technical standpoint and Windows runs extremely well on the new ARM processors. However, the new products raise the question whether the Snapdragon chips can become a permanent alternative for AMD and Intel. The additional AI features will be available on laptops with AMD Strix Point and Intel Lunar Lake as well, and there can be compatibility issues, especially when you want to play games. All in all, we are not sure why you should buy a Snapdragon laptop. it obviously depends on the manufacturers as well. Microsoft, for example, only offers the new Surface models (Surface Pro, Surface Laptop) with the ARM chips, so you do not really have a choice when you want such a device. But if you take the Vivobook, for instance, which is also available with AMD/Intel chips, it will mostly depend on the price.
There is also another aspect to consider. AMD's new Zen5 chips will be available within a couple of weeks and if you believe the rumors/leaks, they will be much faster and more efficient than Zen4. Intel's Lunar Lake processor should also arrive in a few months, and we also expect new MacBook chips in fall. The M4 in the iPad Pro already impressively shows where the journey is going for the Apple's laptop SoCs. Qualcomm could quickly fall behind the competition if it takes too much time before the second generation of Snapdragon X chips is launched.
